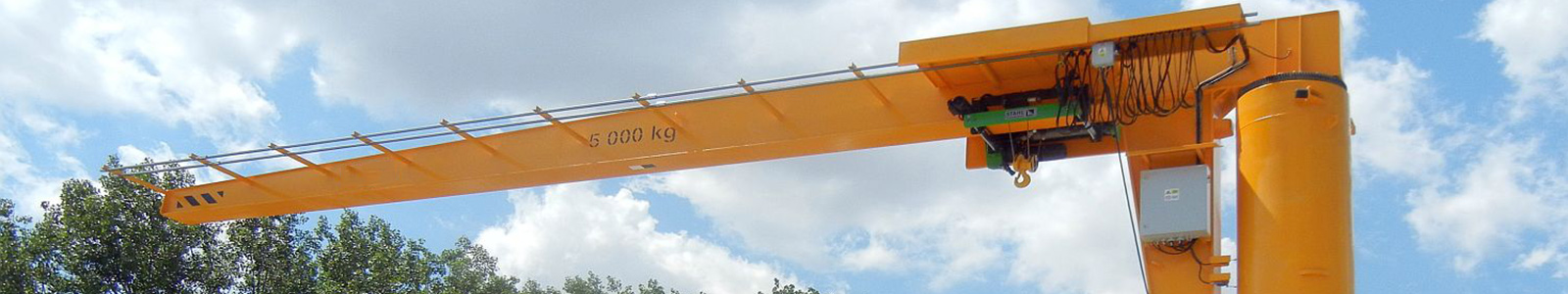

Pillar Mounted Jib Crane systems are essential tools for modern factories that require efficient vertical lifting and horizontal maneuvering of heavy loads within a specific radius. These cranes are designed to be anchored directly to the facility floor which provides exceptional stability and ensures safety during complex operations. When businesses look for reliable Material Handling Solutions, they often choose this specific type of crane because it saves floor space while offering a wide range of motion. The robust structure typically consists of a vertical mast and a horizontal boom that supports the lifting mechanism. Because these units are self supporting they do not require support from the building structure which makes them versatile for various locations within a warehouse. A Floor Mounted Jib Crane creates a dedicated work cell that allows operators to move heavy components from one stage of production to another without waiting for a large overhead bridge crane. This autonomy increases productivity and reduces downtime in busy manufacturing environments. The design creates a permanent lifting station that is perfect for loading machines or assembling heavy parts. Engineers design these cranes to withstand rigorous daily use so they are often classified as Industrial Lifting Equipment suitable for harsh environments. The steel construction ensures longevity and resistance to wear and tear which provides excellent value for the investment over time. By placing these units strategically across a factory floor managers can ensure that every workstation has immediate access to lifting power. The base plate is thick and durable, ensuring that the connection to the concrete foundation remains secure even under constant stress. This type of equipment transforms manual lifting tasks into mechanized processes which significantly lowers the risk of worker injury and boosts overall operational efficiency.
Slewing Jib Crane mechanisms allow the horizontal beam to rotate around the vertical pillar giving the operator precise control over where the load is placed. This rotational capability is vital for reaching corners or servicing multiple workstations arranged in a circular pattern around the mast. To maximize the lifting potential these systems are frequently equipped with a powerful Electric Chain Hoist that moves along the length of the boom. The combination of the rotating arm and the traveling hoist covers a large circular area effectively. One of the most significant advantages of this design is the ability to achieve 360 Degree Rotation which provides complete freedom of movement and eliminates dead spots within the working radius. This full circle coverage is superior to wall mounted versions that are limited by the wall behind them. The horizontal beam is often referred to as a Cantilever Jib Arm and it must be engineered to prevent deflection when lifting near the tip. High quality steel profiles are used to ensure the arm remains rigid even under maximum load. Operators can control the rotation manually or via motorized systems depending on the weight of the load and the frequency of use. Smooth rotation bearings ensure that even the heaviest loads can be positioned with minimal physical effort which reduces operator fatigue and minimizes the risk of strain injuries. The hoist trolley glides smoothly along the arm allowing for minute adjustments during assembly tasks. This precision is critical when aligning heavy gears or engines. The integration of advanced slew limiters can also restrict the rotation to a specific zone if obstacles are present nearby ensuring that the crane does not collide with other machinery or structures.
Heavy Duty Jib Crane models are specifically built to handle loads ranging from a few hundred kilograms to several tons, making them indispensable in foundries steel mills and automotive assembly plants. Selecting the right capacity is crucial for maintaining safety standards and ensuring operational efficiency. The process of Jib Crane Installation requires careful planning and a reinforced concrete foundation to handle the overturning moment generated by the load at the end of the arm. Professional installers use chemical anchors or cast in anchor bolts to secure the base plate firmly to the ground. Once installed, these cranes serve as a localized lifting solution that complements larger plant-wide systems. Safety features usually include rotation stops and overload protection devices to prevent accidents. Regular maintenance of the pillar and the hoist ensures that the equipment remains safe to use for many years. Using such robust equipment optimizes workflow and allows workers to handle materials that would be dangerous or impossible to lift manually. By integrating these cranes into the production line, companies can achieve a seamless flow of materials. The return on investment is realized quickly through improved speed and reduced labor costs associated with manual handling. In the competitive world of manufacturing having reliable lifting gear is not just a convenience but a necessity for staying ahead. Whether it is lifting pallets of raw materials or moving finished goods to a packaging area the strength and reliability of a pillar mounted system provide consistent performance day after day. Proper training for operators further enhances the safety benefits and ensures that the crane functions at peak efficiency throughout its service life.
